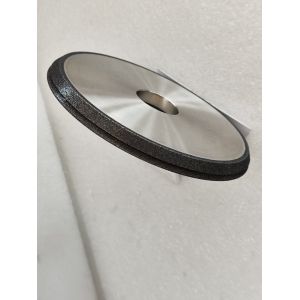

Double Tooth CBN Grinding Wheel Product Description

Product Name: Cubic Boron Nitride (CBN) Grinding Wheel
Product Introduction:
CBN grinding wheel is a super-hard abrasive made by electroplating with cubic boron nitride as abrasive. CBN's hardness is second only to diamond (Mohs hardness 9.8) and has excellent thermal stability (temperature resistance can reach over 1400°C). It is designed for efficient processing of high-hardness and high-toughness iron-based metals (such as hardened steel, high-speed steel, alloy steel, etc.) and is widely used in precision grinding, tool sharpening, aerospace and automotive parts manufacturing.

Product Features:

Ultra-high hardness and wear resistance
CBN abrasive has a hardness close to diamond, and its wear resistance far exceeds that of traditional corundum grinding wheels, with a lifespan extended by 5-10 times.
Suitable for machining hard-to-cut materials such as hardened steel, tool steel, high-speed steel, etc. with HRC50 or above.
Excellent thermal stability
Maintains high strength and chemical inertness at high temperatures to avoid grinding burns and thermal deformation of workpieces.
Reduces dependence on coolant, suitable for dry or minimal lubrication (MQL) machining.
High-precision machining capability
Optimized design, uniform distribution of abrasive particles, can achieve a surface roughness of Ra≤0.2μm.
Good shape retention, suitable for form grinding and complex contour machining.

Application scenarios:

Used for sharpening and repairing drills, milling cutters, turning tools and other tools.

Parameters Options/Range:

Grit: #80, #120, #180, #240, #320, #400, #600 (Rough grinding to mirror polishing full coverage)
Shape: Flat grinding wheel, bowl grinding wheel, disc grinding wheel, formed grinding wheel (such as arc, V-groove, etc.)
Outer diameter (D): 50mm-500mm (supports customized oversized size)
Aperture (H): 10mm, 20mm, 31.75mm, 50mm (suitable for various types of grinder spindles)

Of course, We can customize the size according to your requirements

Packing and Shipping

Electroplated diamond grinding wheels are carefully packaged for shipment. Each wheel is placed in a plastic bag and wrapped in bubble wrap to prevent it from being scratched or damaged during transit. The package is then placed in a cardboard box and taped securely.

All orders are shipped via a reliable courier service. The tracking information and estimated delivery time are provided to customers once the order is shipped.

Company introduction

Our company is a leading manufacturer in the field of CBN super-hard abrasives, with independent high-temperature sintering and precision molding technology, and its products are certified by ISO 9001 and the aerospace industry. We provide standardized and customized CBN grinding wheel solutions, serving customers in the automotive, tool, and energy industries around the world.

If you need to customize special particle size, shape or obtain processing parameter optimization solutions, please contact us!
